Interface Address

https://api.example.com/omstation/station/queryStationLatticeDetail

During the development process, please replace api.example.com with the domain name or IP address of your own server.

Request Method

  • Post

Request Headers

  • Content-Type: application/json

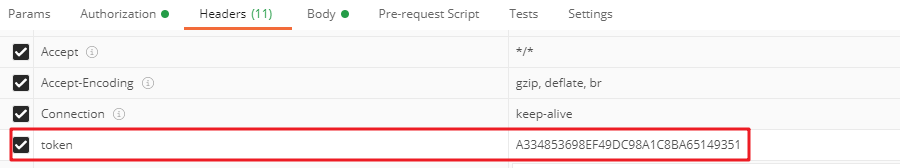

  • token: A334853698EF49DC98A1C8BA65149351

Request Parameters

Parameter Example

{
"id":"SG240304001",
"startTime":"2024-03-07",
"endTime":"2024-03-15"
}

Parameter Description

Field Type Description Required
id String Unique identifier of the management station Y
startTime String Start time (UTC) Y
endTime String End time (UTC) Y

Return Result

Result Example

{
    "code": 200,
    "message": "Operation succeeded",
    "data": {
        "stationStatistics": {
            "sumStationCount": 3,
            "sumLowInventoryCount": 0,
            "sumInStorageCount": 0,
            "sumAvailableCount": 2,
            "sumFullChargeCount": 0,
            "sumAbnormalCount": 0,
            "sumLatticeCount": 0,
            "sumEmptyLatticeCount": 1,
            "sumInChargeCount": 0
        },
        "stationLatticeInfoList": [
            {
                "id": "BD5D853AA3174767B2A5FDEB76D3C0B5",
                "index": 2,
                "stationId": "SG240304001",
                "latticeNo": "A2",
                "updateTime": "2024-03-04T02:59:41.564673500Z",
                "lockStatus": -1,
                "deviceId": "5648974546",
                "connectPower": 1,
                "isFull": 0,
                "isFailure": 1,
                "deviceType": 701
            },
            {
                "id": "228A81E14C6C4C6392C6E7AFB8895ADD",
                "index": 1,
                "stationId": "SG240304001",
                "latticeNo": "C1",
                "updateTime": "2024-03-04T02:59:41.564673500Z",
                "lockStatus": -1,
                "deviceId": "",
                "connectPower": 0,
                "isFull": 0,
                "isFailure": 0,
                "fileUrl":"https://jointech-705c-bucket.obs.ap-southeast-1.myhuaweicloud.com/omstation_filesSG230101001/_20240321145029/20240321145029.mp4",
                "deviceType": 705
            },
            {
                "id": "76FDCF112E064A6880F028D0F226522D",
                "index": 1,
                "stationId": "SG240304001",
                "latticeNo": "A1",
                "updateTime": "2024-03-04T02:59:41.564673500Z",
                "lockStatus": -1,
                "deviceId": "8794654658",
                "connectPower": 1,
                "isFull": 0,
                "isFailure": 1,
                "fileUrl":"https://jointech-705c-bucket.obs.ap-southeast-1.myhuaweicloud.com/omstation_filesSG230101001/_20240321145029/20240321145029.mp4",
                "deviceType": 701
            }
        ],
        "deviceInfoList": [],
        "stationLogList": []
    }
}

Result Description

Field Type Description
code int Status code; see “Status Code Description” for details
message String Request status description
data object Return result content

Data Description

Field Type Description
total int Total number of data entries
size int Page number
data object Message body of the current page in pagination query

Data (Root Level) Description

Field Type Description Required
stationStatistics List Operation management cabinet statistics objects Y
stationLatticeInfoList List Operation management cabinet lattice information objects Y
deviceInfoList List In-cabinet device information objects Y
stationLogList List Cabinet operation information objects Y

stationStatistics Field Description

Field Type Description Required
sumStationCount int Number of operation management cabinets Y
sumLowInventoryCount int Number of operation management cabinets with low inventory Y
sumInStorageCount int Number of devices in the cabinet Y
sumAvailableCount int Number of available devices Y
sumFullChargeCount int Number of fully charged devices Y
sumAbnormalCount int Number of abnormal devices Y
sumLatticeCount int Total number of lattice compartments Y
sumEmptyLatticeCount int Total number of empty lattice compartments Y
sumInChargeCount int Number of devices being charged Y

stationLatticeInfoList Field Description

Field Type Description Required
id String Unique identifier of the lattice compartment Y
index Int Lattice compartment serial number Y
stationId String Operation management cabinet ID Y
deviceId String Security device ID Y
latticeNo String Lattice compartment name Y
updateTime String Last update time Y
latticeInfo String Details of lattice type quantity correspondence (JSON string) Y
lockStatus String Cabinet door status (0: Closed; 1: Open; -1: No status) Y
deviceId String Device number Y
connectPower Int Whether connected to power (1: Yes; 0: No; -1: No status) Y
isFailure Int Whether faulty (0: No; 1: Yes) Y
deviceType Int Device type Y
deviceTypeName Int Device type name Y
stationName String Operation management cabinet name Y

deviceInfoList Field Description

Field Type Description Required
deviceId String Device number Y
deviceType Int Device type Y
deviceTypeName Int Device type name Y
stationId String Operation management cabinet ID Y
latticeNo String Lattice compartment name Y
chargeStatus Int Charging status (0: Not charging; 1: Charging; 2: Fully charged; -1: Unknown) Y
battery Int Battery level (255 indicates charging) Y
onlineStatus Int Network status (0: Not connected; 1: Connected; -1: Unknown) Y
gpsSignal Int Signal value Y
lat double Latitude Y
lon double Longitude Y
gpsTime String Positioning time Y
orgName Int Organization name Y
stationName String Operation management cabinet name Y

stationLogList Field Description

Field Type Description Required
deviceId String Device number Y
deviceType Int Device type Y
deviceTypeName Int Device type name Y
stationId String Operation management cabinet ID Y
stationName String Operation management cabinet name Y
orgName String Organization name Y
latticeNo String Lattice compartment name Y
userName String Operator Y
dateTime String Creation time Y
FFileIndex String Attachment serial number (non-empty indicates there is an attachment) Y
type Int Operation type Y
fileUrl String Attachment path (non-empty indicates there is an attachment) Y
